CRT Production Machinery

WELSCH INDUSTRIAL specializes in the development and manufacturing of special machines for concrete roof tile production. Our ContiAct® tile making machines achieve a design speed of 170 TPM with an effective output of 140-150 tiles per minute, while our RiLu® spray booths operate at up to 150 TPM for pure acrylic coating. All machines are individually tailored to our customers' requirements, built on massive cast-iron and heavy-walled structural steel foundations, and are deployed in over 50 countries worldwide since 2003.

Our complete production line portfolio includes: ContiAct® extrusion machines (170 TPM), RiLu® spray booths and 8th generation hybrid filters (150 TPM), automatic rackers and linear feeders, demolding machines, pallet end cleaners (120 TPM), small pack collators (up to 150 TPM), and linear gantry palletizers. All designed and manufactured in Germany.

Our Products

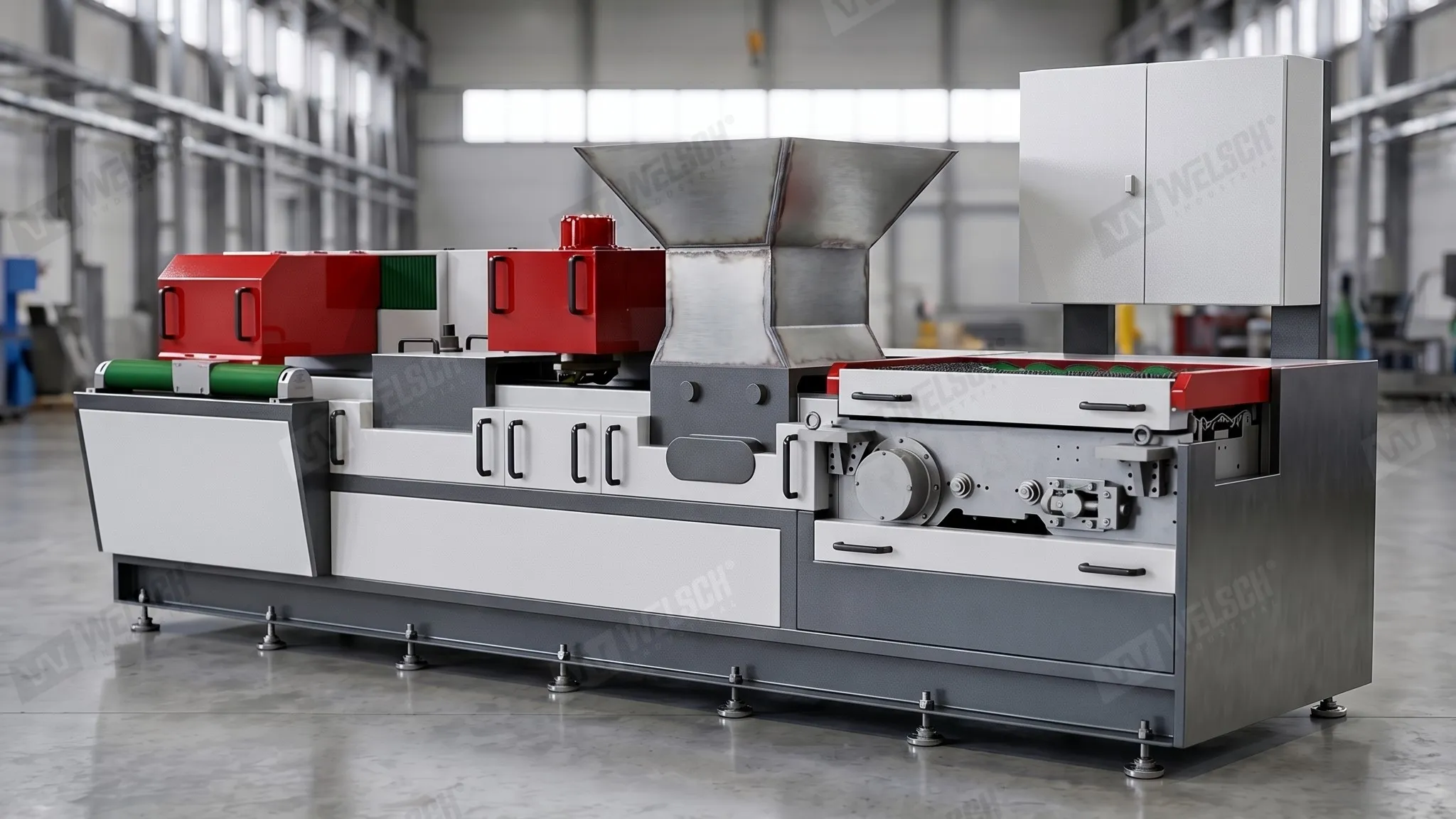

ContiAct® Tile Machine
01

ContiAct® Tile Machine

Heritage DNA. Bespoke Technology. Engineering the Lead.

View Details

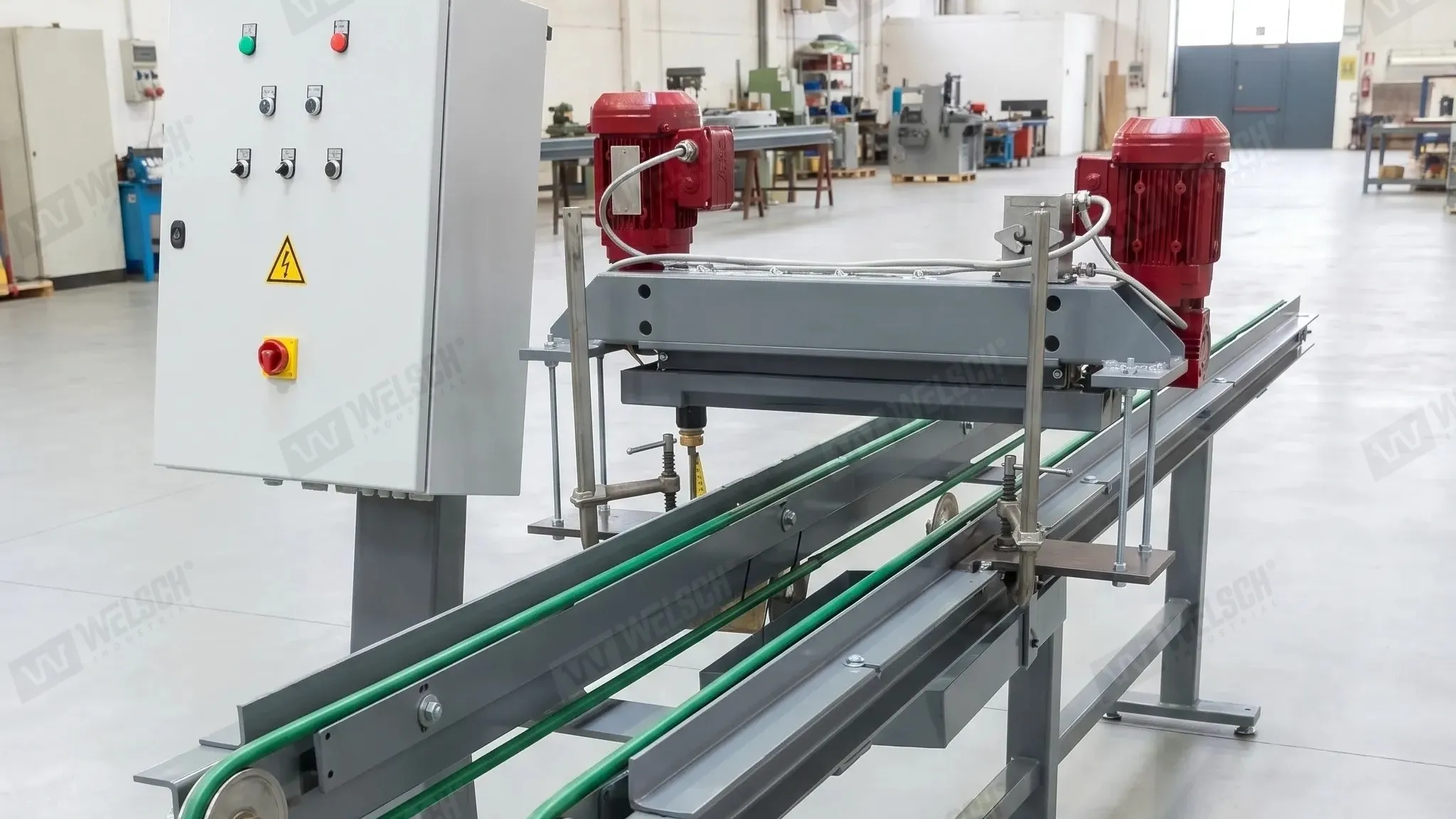

ContiAct® Rotary Brush Oil Applicator
02

ContiAct® Rotary Brush Oil Applicator

The Zero-Mist Fortress for ultra-thin, spray-mist-free application of oil to pallets.

View Details
RiLu® Spray Booth
03

RiLu® Spray Booth

The Global Benchmark in Acrylic Coating at 150 tiles per minute.

View Details
RiLu® Hybrid Filter
04

RiLu® Hybrid Filter

The Dynamic Filtration System for fresh and return acrylic paints.

View Details

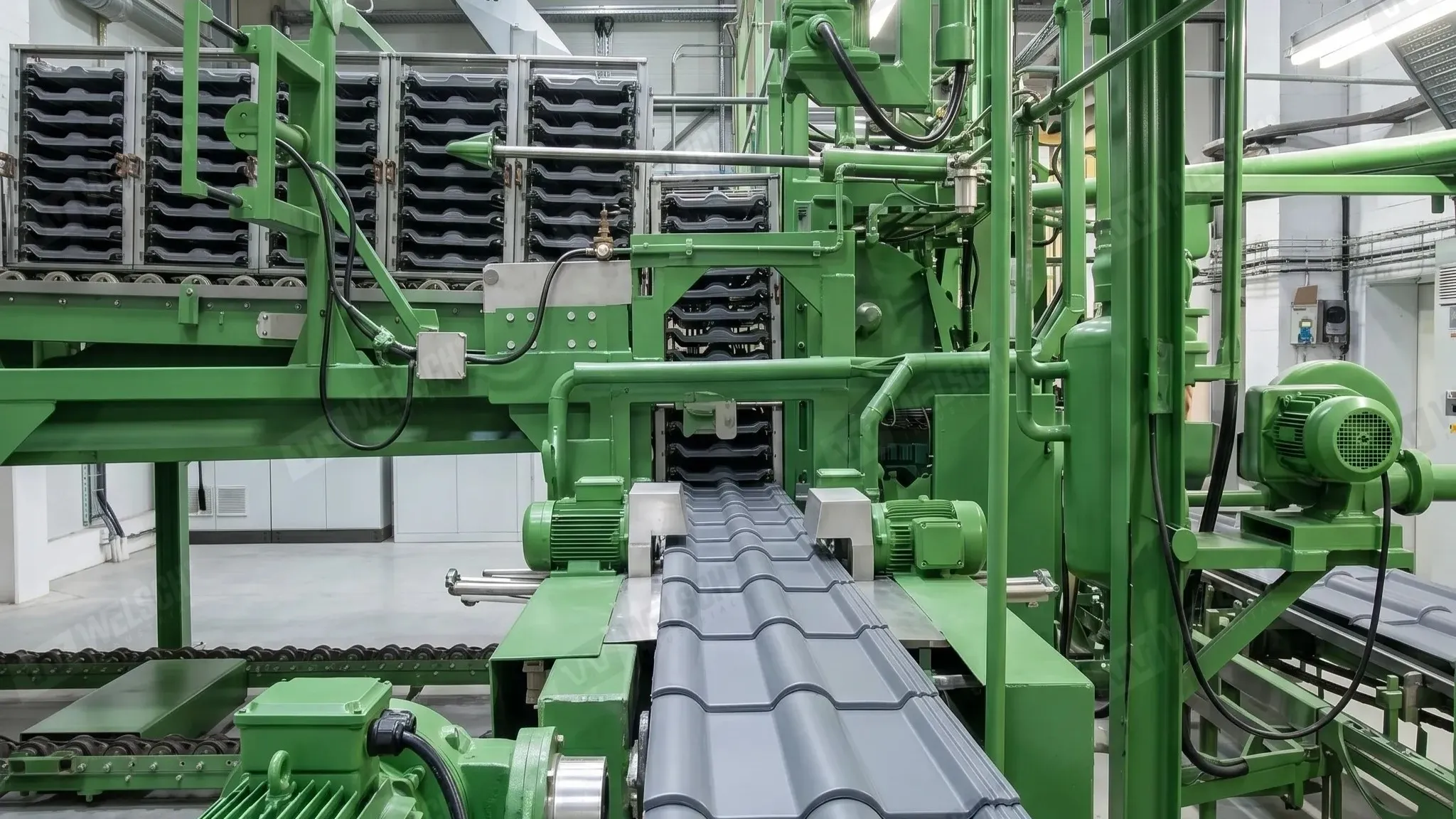

Auto Racker & Linear Feeder
05

Auto Racker & Linear Feeder

The Heritage of Heavy-Duty Racking. Massive vertical paternoster systems for high-volume concrete plants.

View Details

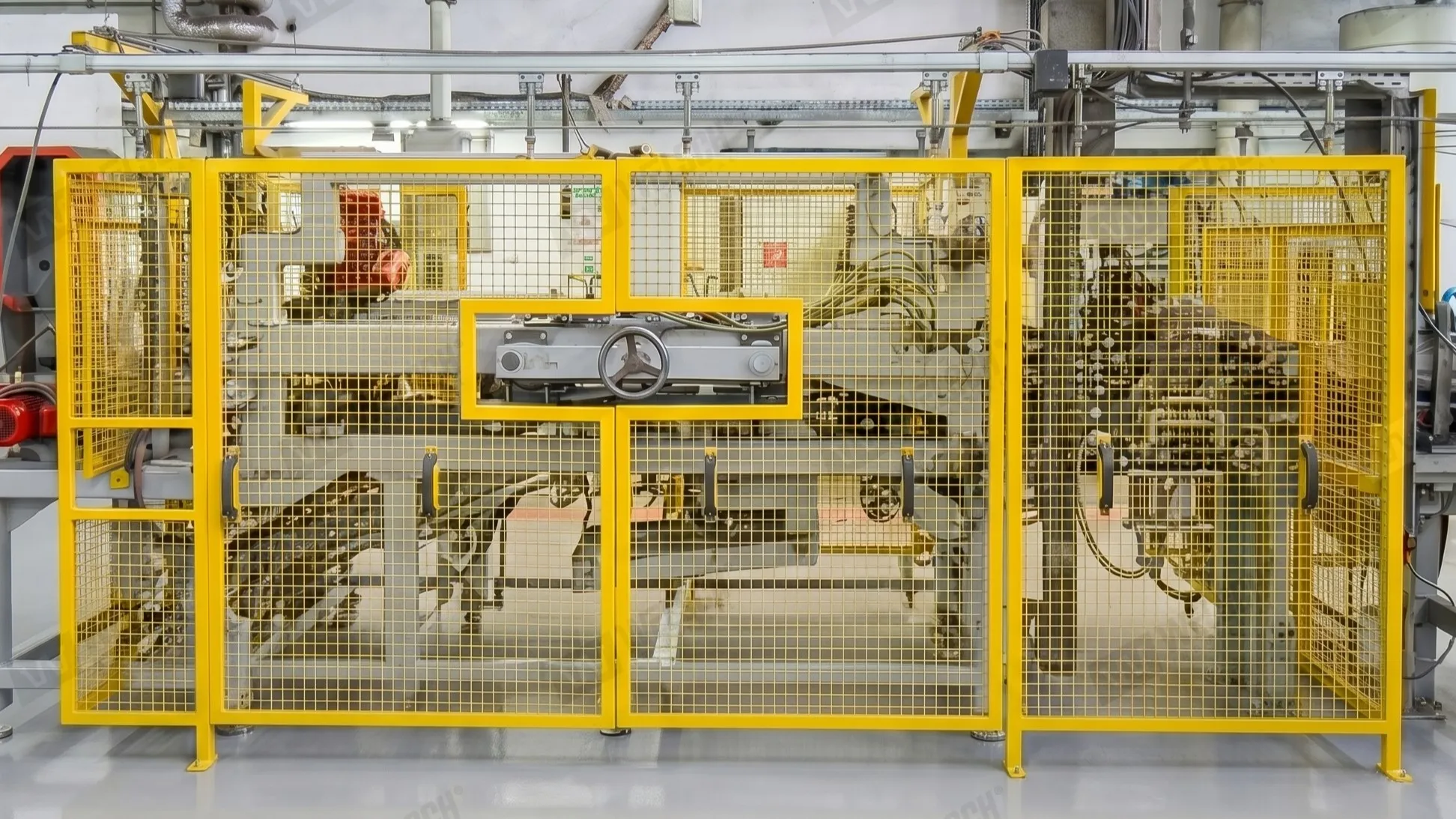

Main Tile & Universal Demolding Machines
06

Main Tile & Universal Demolding Machines

Precision Tile & Pallet Separation for high-speed specialist and universal platform demolding.

View Details

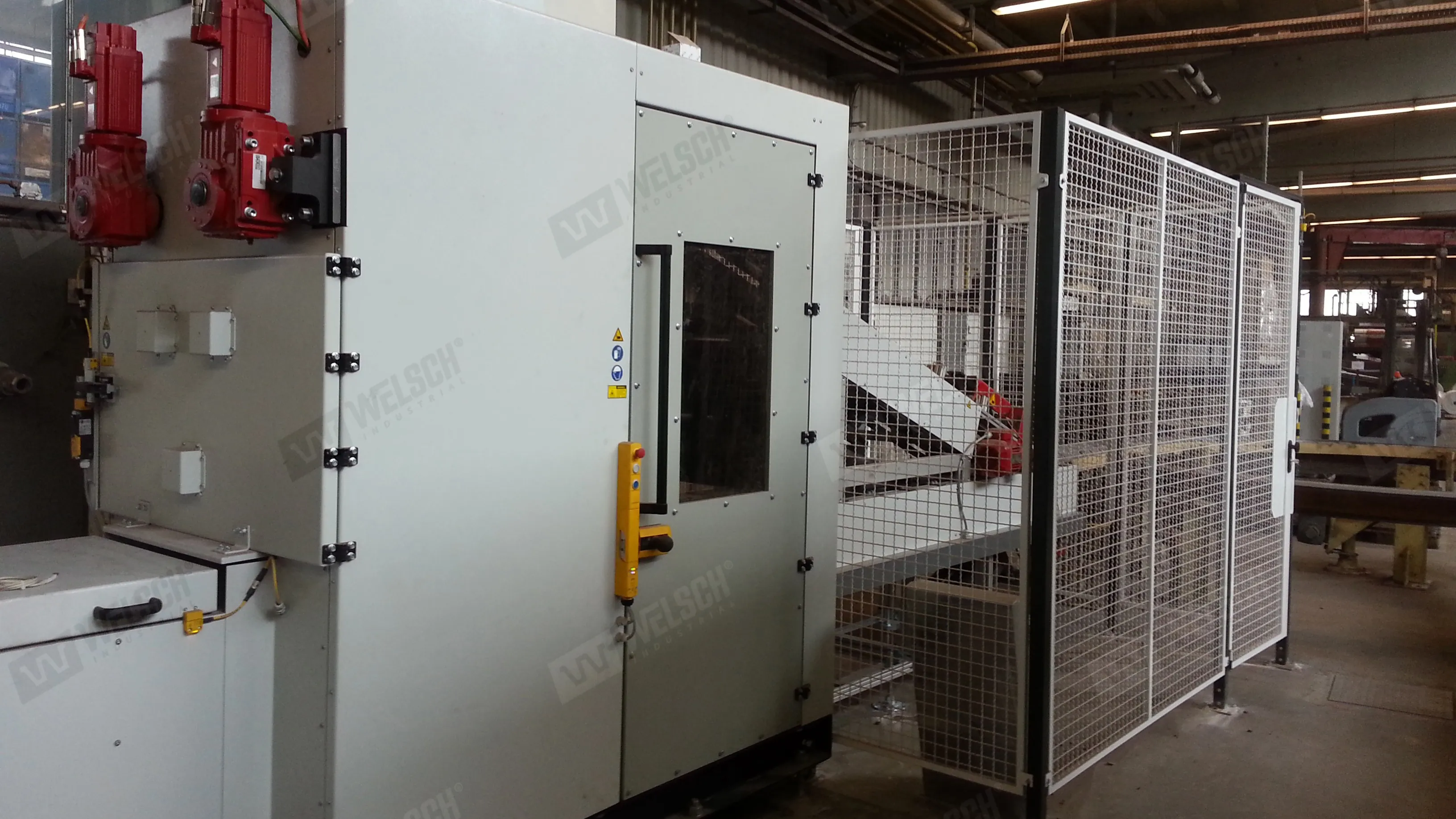

Pallet End-Cleaner
07

Pallet End-Cleaner

The Vertical Reset Elevator. Eliminates ghost length buildup at up to 120 TPM.

View Details

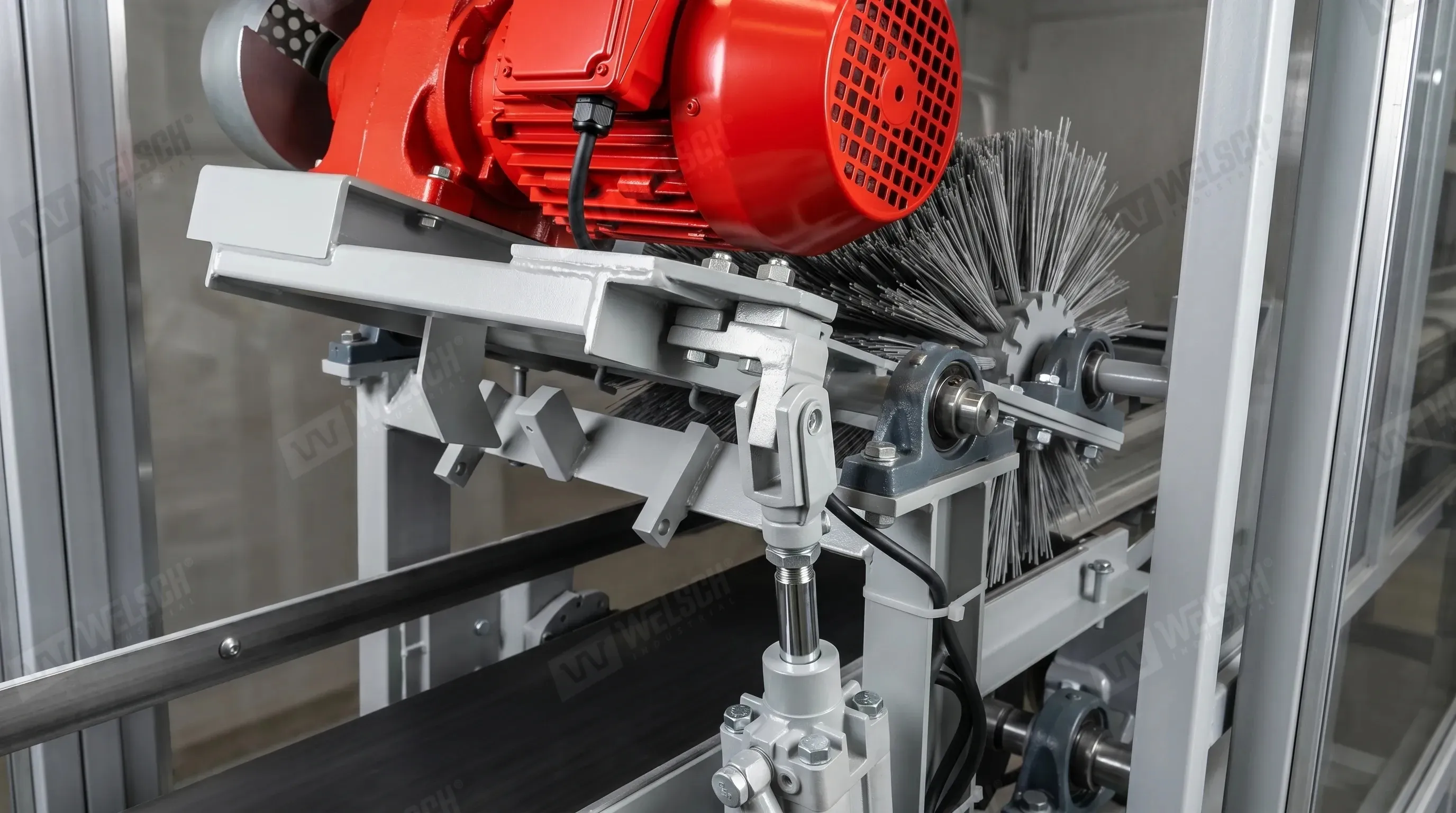

Pallet Surface Brush Cleaning Station
08

Pallet Surface Brush Cleaning Station

The Clean-Sheet Reset. Counter-rotating hybrid bristle array for zero-defect molding surfaces.

View Details

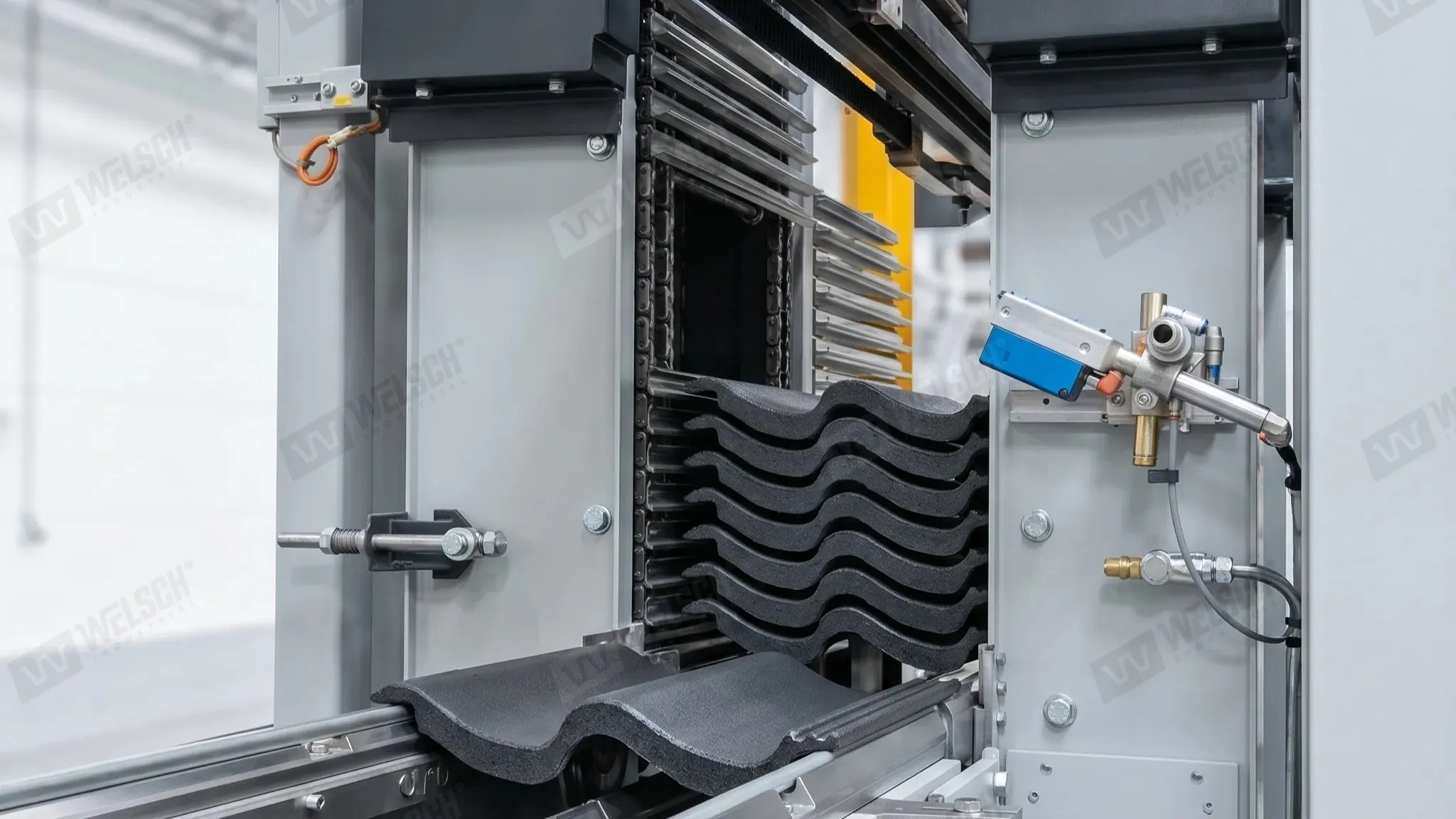

Small Pack Collator
09

Small Pack Collator

Evolution of a High-Velocity Legend. 150 TPM packaging with vertical dual-chain stacking logic.

View Details

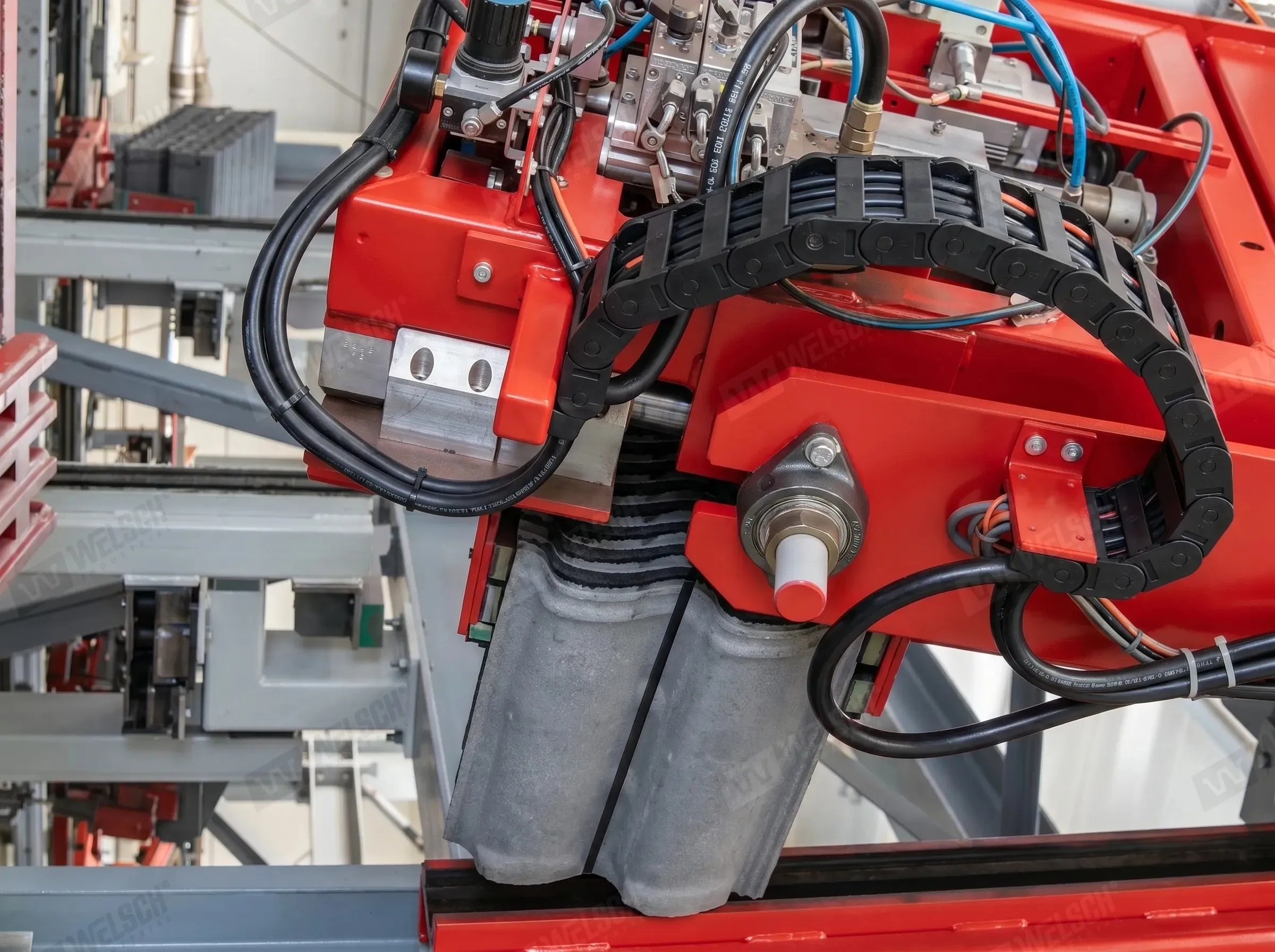

4-Axis Linear Gantry
10

4-Axis Linear Gantry

Precision-Touch Unitizing. Heavy-duty XYZ-axis system for perfectly square, stable pallets.

View Details

Frequently Asked Questions

ContiAct® is WELSCH INDUSTRIAL’s proprietary technology for continuous high-compaction extrusion of concrete roof tiles. The machines achieve a design speed of 170 tiles per minute (TPM) with a consistent effective output of 140 to 150 TPM for standard tiles. What sets ContiAct® apart is the combination of massive cast-iron construction that absorbs high-frequency vibrations, rolling block link chain pallet drives for micron-level positioning, vacuum-hardened guide rails, and tungsten carbide-armored extrusion heads with chrome-manganese carrier bodies. We also offer specialized ContiAct® machines for complex fittings such as verges, ridges, and hip caps at 25 to 30 TPM, as well as fully customized configurations for unique production requirements.
Yes, WELSCH INDUSTRIAL specializes in the technical overhaul, modernization, and conversion of concrete roof tile production lines across all global brands, with a deep focus on Braas/Redland and Powell Automation systems. Our approach goes beyond simple repair: we elevate existing equipment to modern 2026 performance standards by integrating contemporary mechatronics into proven heavy-duty frames. This includes upgrading pallet drives with zero-backlash power transmission, optimizing extrusion head geometry for improved laminar concrete flow, modernizing cutting tables, and retrofitting wear-critical zones with tungsten carbide protection. We can modernize individual components or deliver complete machine overhauls, extending the productive lifecycle of your capital investment by decades.
The RiLu® spray system is WELSCH INDUSTRIAL’s high-precision coating solution for applying pure acrylic paints to concrete roof tiles at up to 150 TPM. It uses a three-part cabin architecture: a feeding chamber that neutralizes incoming air turbulence, the main spray cabin with specialized sloped-hood geometry, and an exit chamber that captures residual mist for recycling. The polished stainless steel interior is virtually free of ledges or dead zones, while kinetic baffles intercept overspray and direct it into collection basins for reuse. Our 8th generation RiLu® hybrid filter with rotating vibration technology and optional oxygen barrier ensures clog-free filtration over multiple shifts without maintenance interruption.
