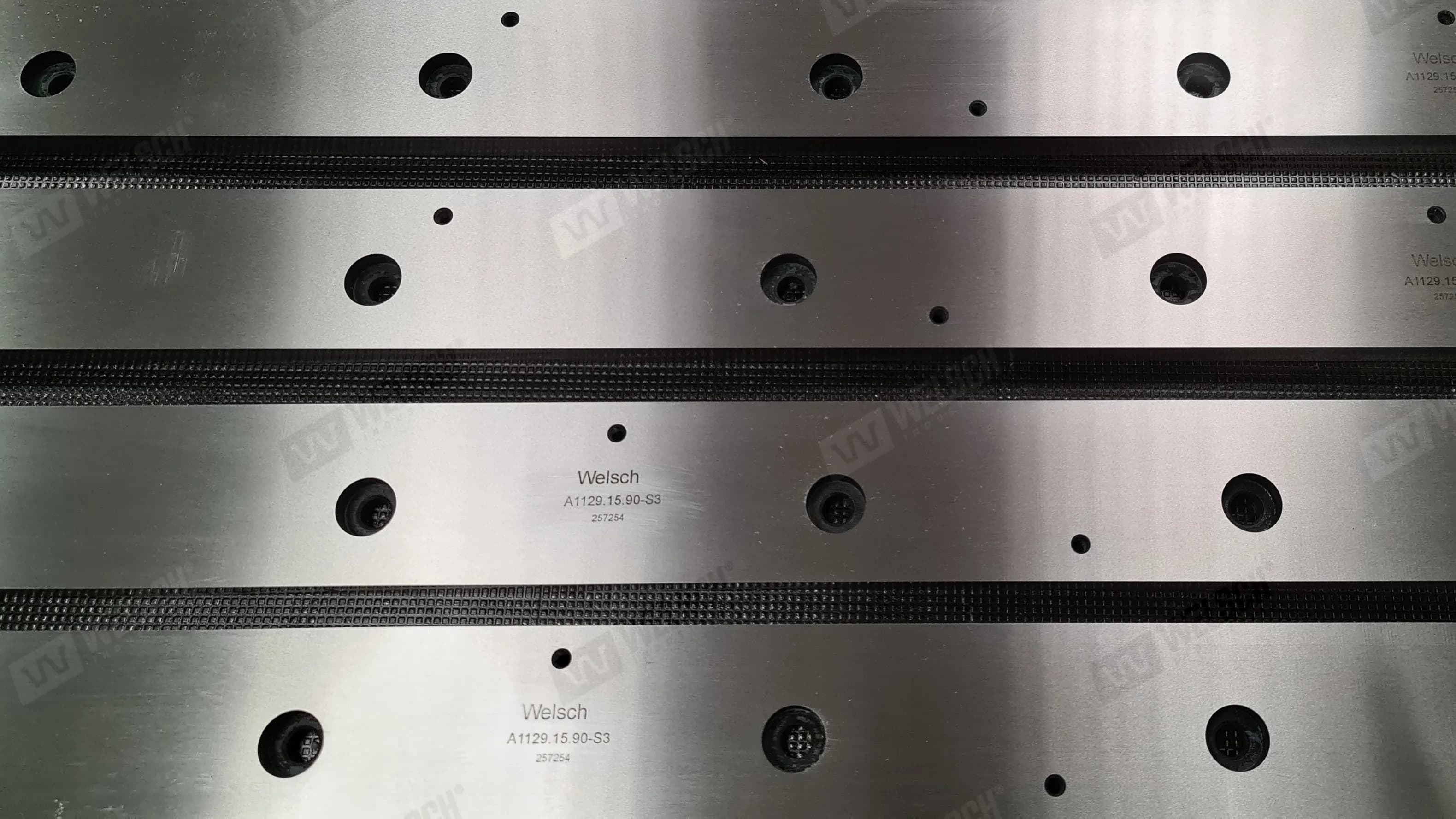

Large-Format Guide Rails

In a high-output production environment, linear accuracy over long distances is the decisive factor in reducing carrier wear and ensuring synchronized timing. WELSCH Large-Format Guide Rails represent a unique capability: the ability to machine macro-scale components with micro-scale tolerances. By providing single-setup machining for lengths up to 4,000 mm, we eliminate the segmental junctions and alignment deviations that cause kinetic interruptions and slurry accumulation in standard lines.

Most standard CNC centers are limited to 1,000 mm or 2,000 mm, forcing manufacturers to piece together multiple rail segments. WELSCH bypasses this mechanical limitation with continuous single-setup machining for guide rails and slideways up to 4,000 mm in one uninterrupted operation. This ensures absolute parallelism and a seamless surface finish across the entire length, significantly reducing friction on pallet guide-shoes.

We utilize tension-relieved high-alloy steels engineered for long-format stability, ensuring the rails remain surgically straight even after years of high-frequency vibration and thermal cycling. Surface topography is controlled using Ra and Rz roughness protocols to optimize lubricant retention while minimizing concrete or industrial debris adhesion.

Technical specifications include a milling envelope of X-axis up to 4,000 mm, Y-axis up to 1,000 mm, and Z-axis up to 800 mm, with high-precision linear alignment within +/- 0.02 mm over the full 4,000 mm length. Rails are supplied with induction hardened or vacuum hardened wear-surfaces reaching 59-62 HRC, with precision-bored custom mounting patterns for drop-in replacement of legacy OEM rails.
